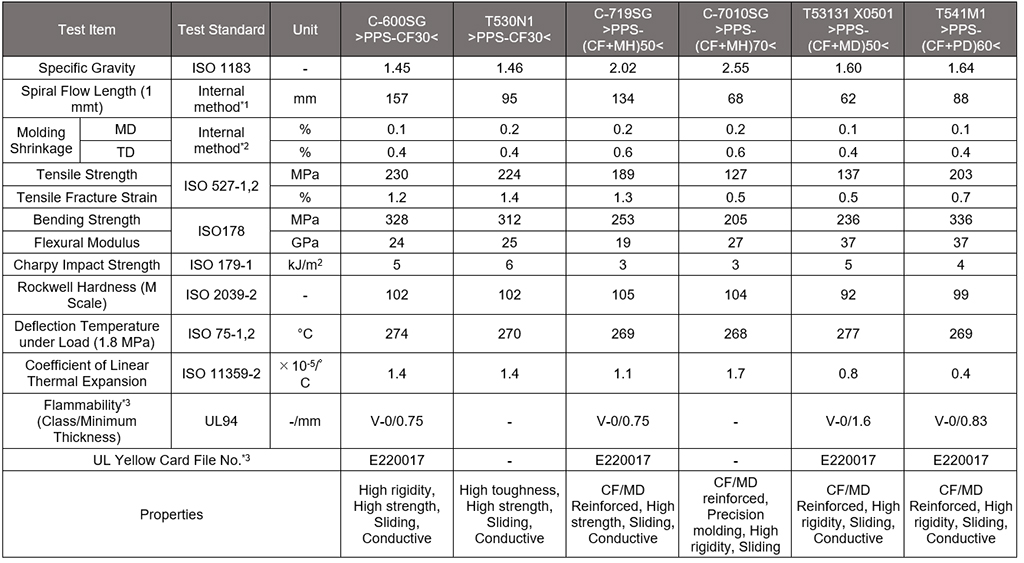

Physical Property Table of Carbon Fiber-Reinforced Grades


Physical Property Table of Carbon Fiber-Reinforced Grades

*1 Resin Temperature 320℃, Injection Pressure 100 MPa, Mold Temperature 135℃
*2 Flat plates (80 x 80 x 3.2 mm, Film Gate), Mold Temperature 135℃
*3 The color and thickness are different depending on the grade. Please check the yellow card for details.

Notes
1. The data described in this document are typical data of measurements obtained under specific conditions.
2. Application examples described in this document do not guarantee the same product quality in your actual applications.
3. It is your responsibility to investigate industrial property rights and the terms of use regarding your products.
4. Consult with us separately when using our products for medical devices or pharmaceuticals.
5. Please note that the contents of this document are subject to change for improvement without prior notice.

In addition to the grades above, we have many other grades available. We will propose the most suitable grade for you.
If you have any problems or questions, please feel free to contact us.
